ZZ^® M23-S90

Technical details

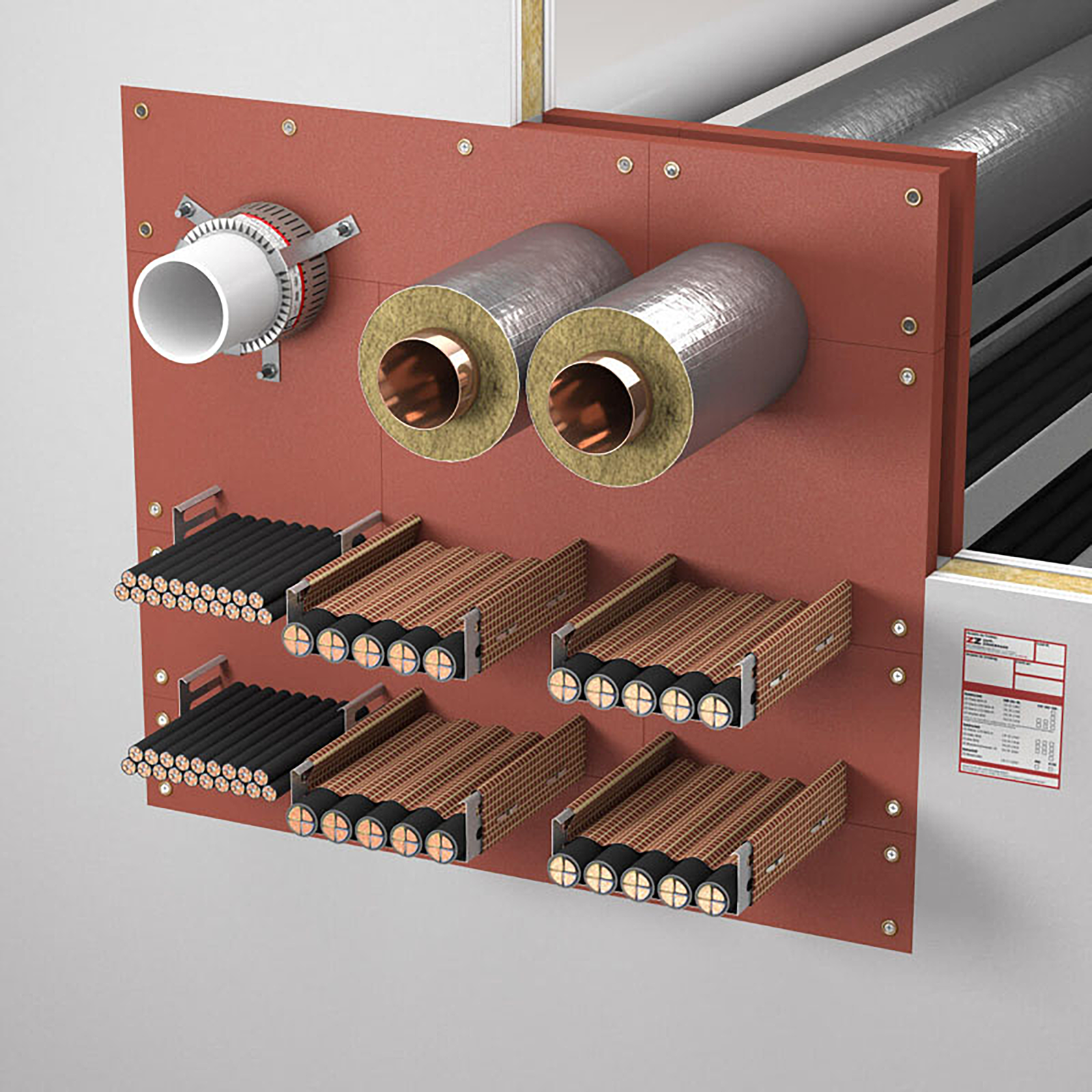

• Lightweight partition walls, d ≥ 10 cm

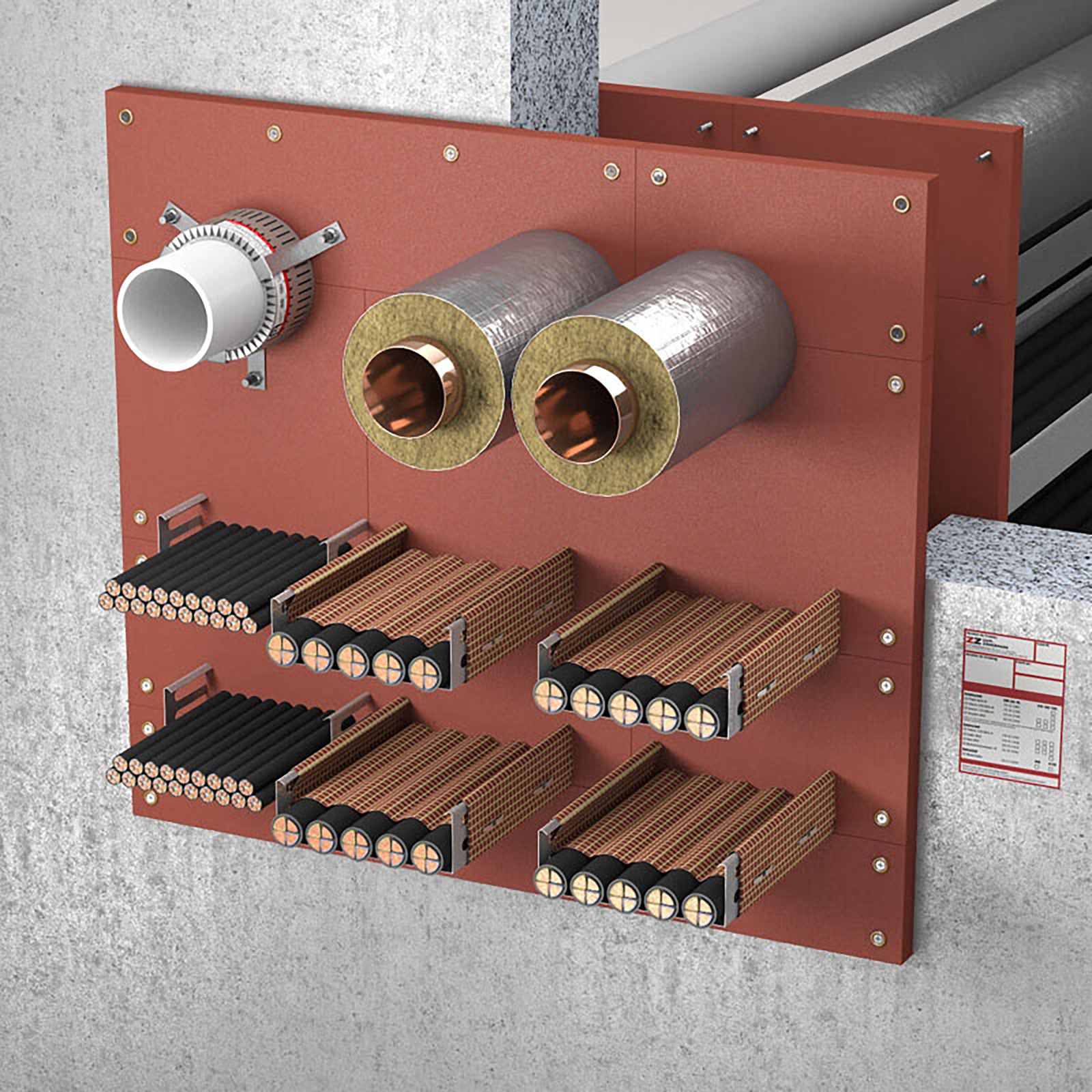

• Solid walls, d ≥ 10 cm
• Solid ceilings, d ≥ 15 cm -
• Bulkhead thickness, walls, d ≥ 10 - 16 cm
• Bulkhead thickness, ceilings, d ≥ 15 - 21 cm
• Max. Opening size walls: 100 x 100 cm
• Max. Opening size of ceilings: 60 cm x unlimited
• Cables of all types (without internal cavities), ø ≤ 80 mm
• Cable bundles, ø ≤ 60 mm, individual cables ø ≤ 21 mm
• Steel, stainless steel, cast steel and copper pipes
• Plastic conduits, for liquids
• Cable support structures made of steel, aluminum or plastic may be routed through the penetration seal
• EIectro installation pipes, rigid, made of plastic ø ≤ 20 mm, up to 4 pieces directly next to each other
• Mineral wool mats or shells, d ≥ 20 or ≥ 40 mm, including PVC sheathing or sheet steel if necessary
