ZZ^® M20-S90

Technical details

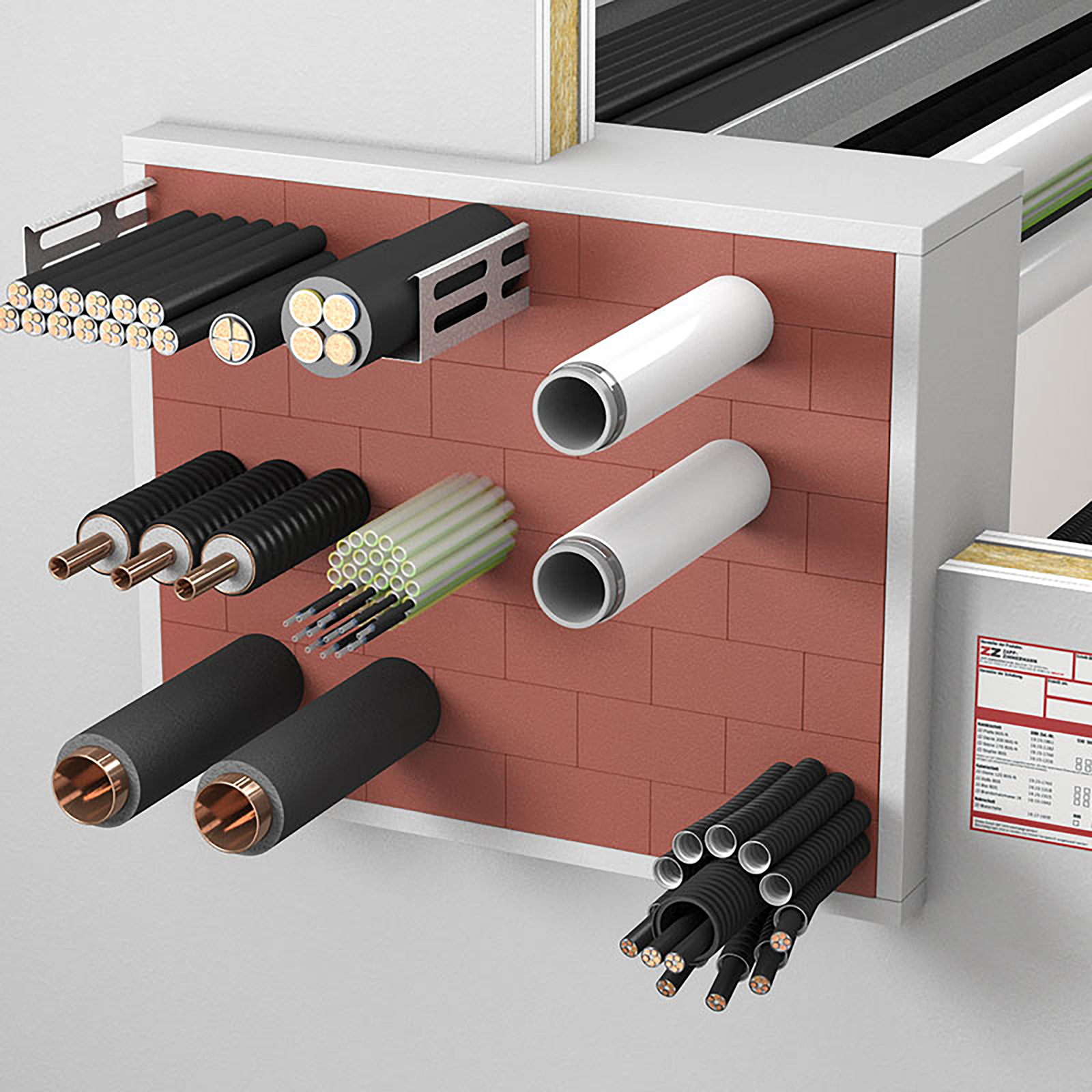

• Lightweight partition walls, d ≥ 10 cm
• Solid walls, d ≥ 10 cm
• Gypsum wallboards, d ≥ 8 cm
• PRIOWALL type walls, d ≥ 4.2 cm

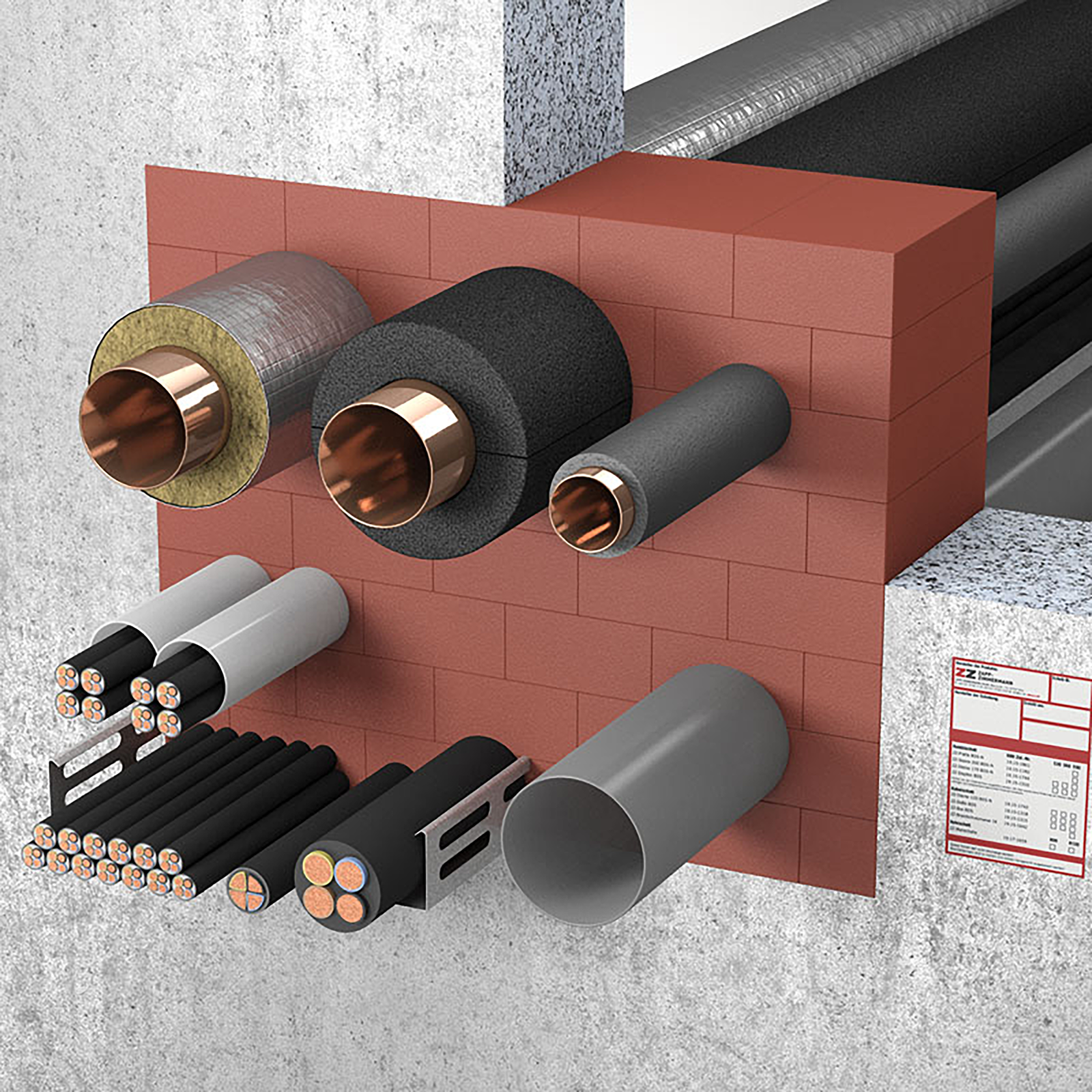

• Solid ceilings, d ≥ 15 cm
• Bulkhead thickness, d ≥ 20 cm
• Cables of all types (without internal cavities), ø ≤ 80 mm
• Coaxial cable
• Cable bundles, ø ≤ 100 mm, individual cables ø ≤ 21 mm
• Fiber optic cables in bundled tubes ("speed pipe"), ø ≤ 100 mm
• Plastic pipes, for liquids
• Aluminum composite pipes, ø ≤ 63 mm
• Steel, stainless steel, cast steel and copper pipes
• Hydraulic pressure lines "AEROQUIP", ø ≤ 38.1 mm
• Cable support structures made of steel, aluminum or
• plastic may be routed through the penetration seal
• EIectro installation pipes, flexible or rigid, made of plastic ø ≤ 63 mm, also as bundles ø ≤ 100 mm
• Mineral wool mats or shells, including PVC sheathing if necessary
• Flexible elastomer foam (FEF)
• Foam glass pipe shells
