Quadro-Secura® Nova R4
- Multi-section house entry as series version
- For use in structures structures made of waterproof concrete
- for gas, water, electricity or telecommunications systems
Quadro-Secura® Nova R4
added to
.
Quadro-Secura® Nova R4
removed from
.
Technical details
- DVGW approved
- Gas and pressurized water-tight up to 1 bar
- Radon-tight - in accordance with FHRK leaflet MB 101, meets the requirements for radon precautionary areas
- Variable arrangement of the individual sections possible
- Connection option for rigid or flexible DN 90 casing pipes, larger or smaller diameters possible via extension sleeves or reducers
- Suitable for immediate installation in the floor slab or later installation in a recess in the floor slab
- Variable height adjustment to the finished floor level up to 155 mm possible

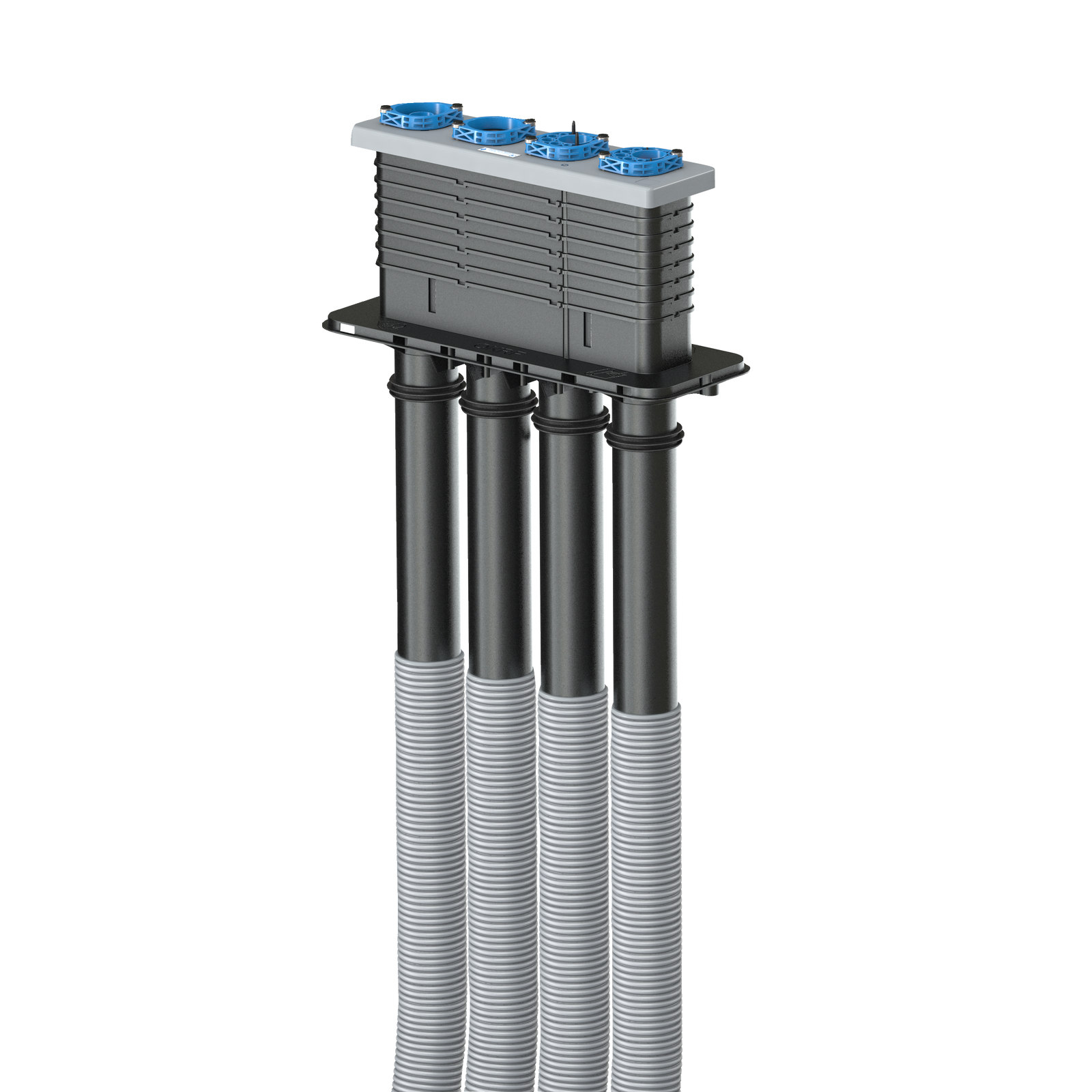

- Raw component consisting of plastic lining pipe in row arrangement and connection sleeves incl. rigid DN/OD 90 (ID 78) casing pipe and height-adjustable ground spike
Areas of use
- Multi-section house entry as series version
- For use in structures structures made of waterproof concrete
- for gas, water, electricity or telecommunications systems
Product benefits
- with adhesive flange in accordance with DIN 18533 for connecting seals or radon foils to the floor slab
- rigid and tear-proof casing pipes to maintain the bending radii
- Pipes can be replaced at a later date (relining)
- Installation without torque wrench
- Can be used for all standard flexible gas house entry combinations
- No on-site leak test in accordance with DVGW G459-1 required
Media
skip
-

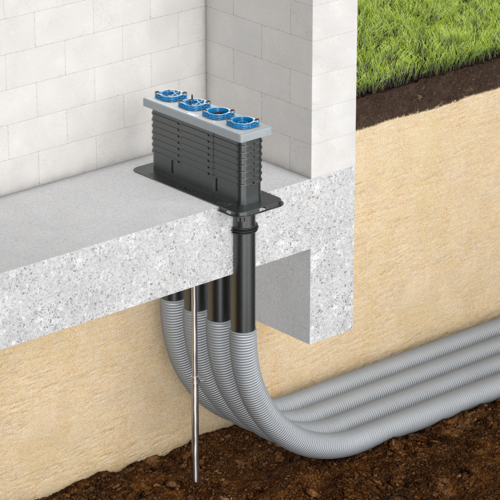

Installation situation
