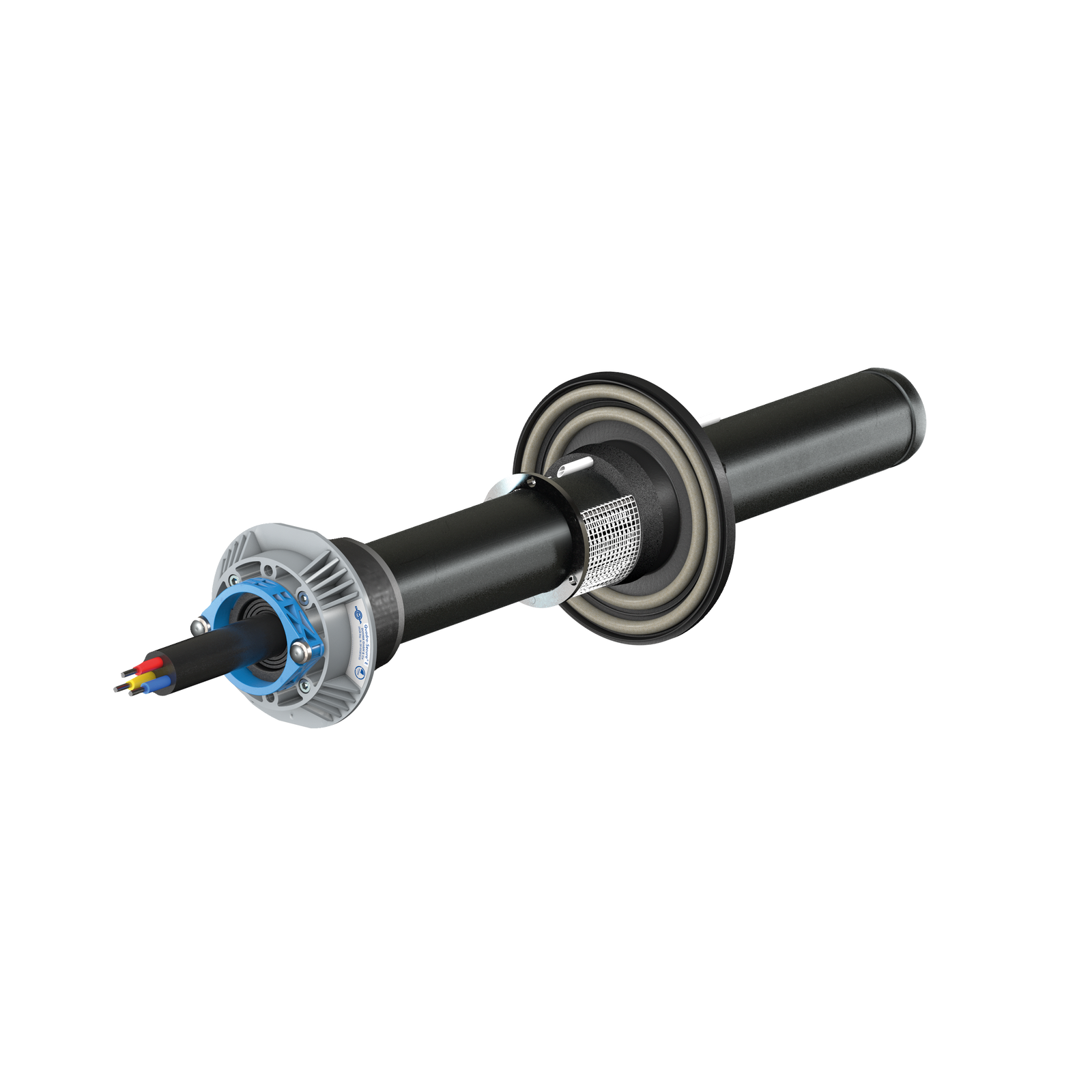

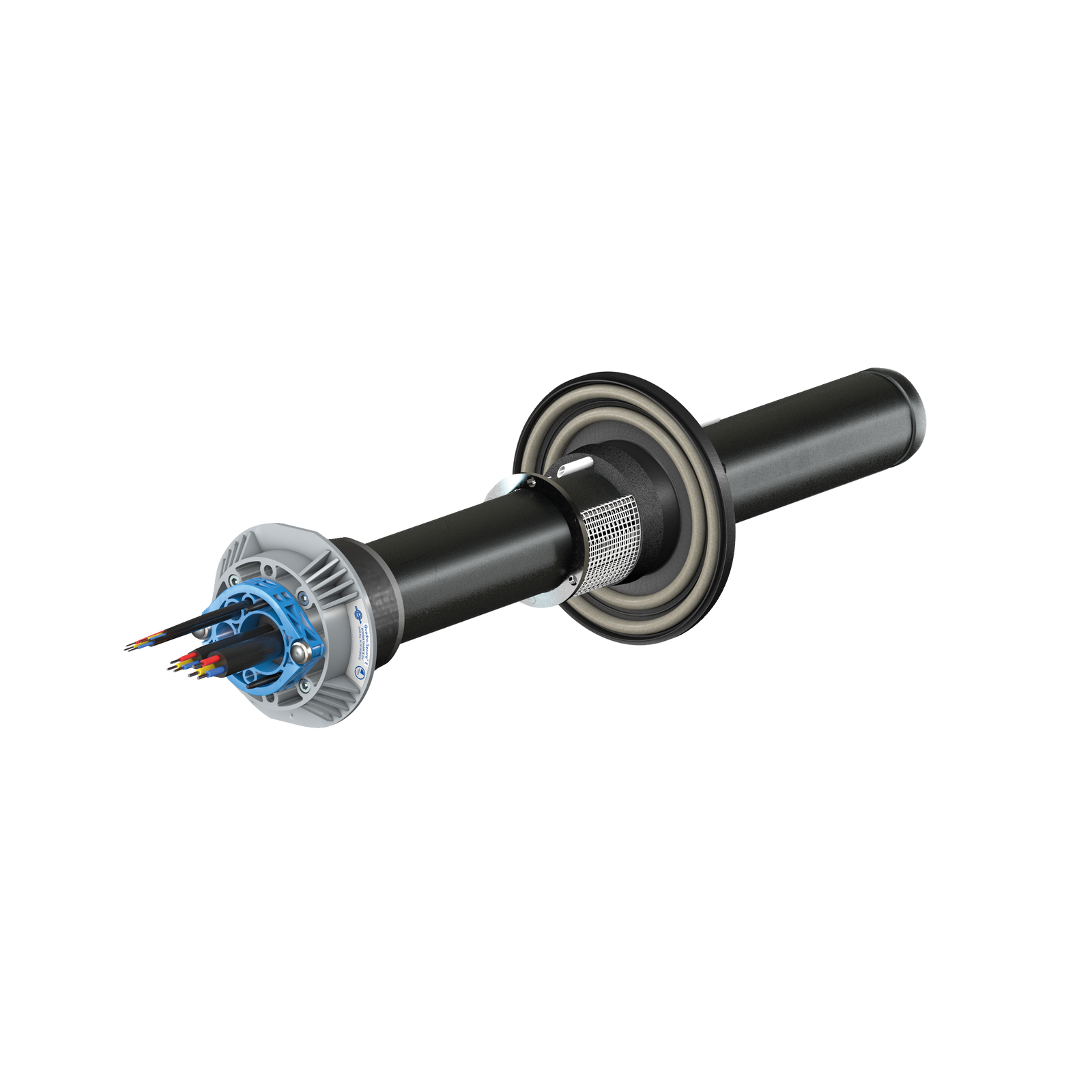

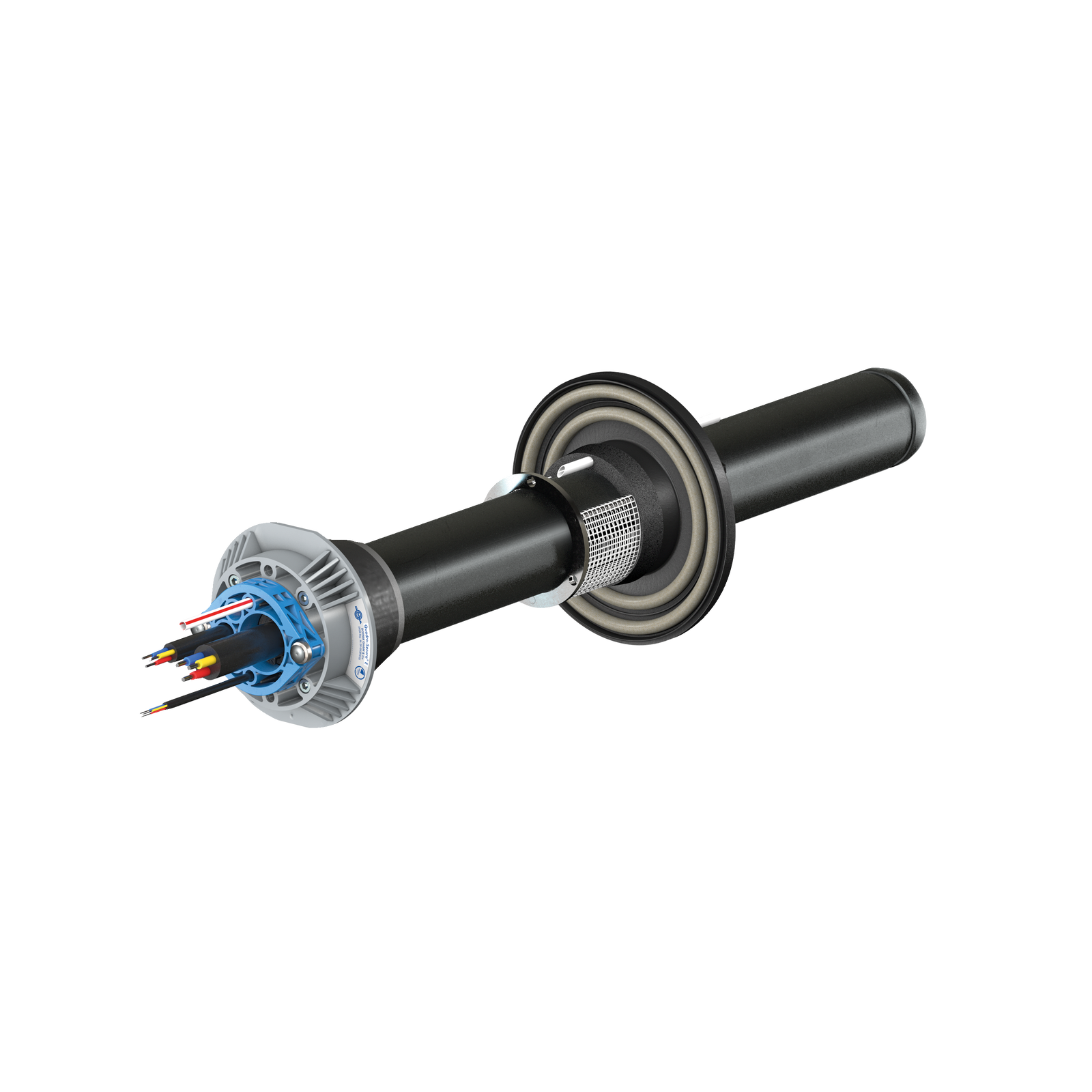

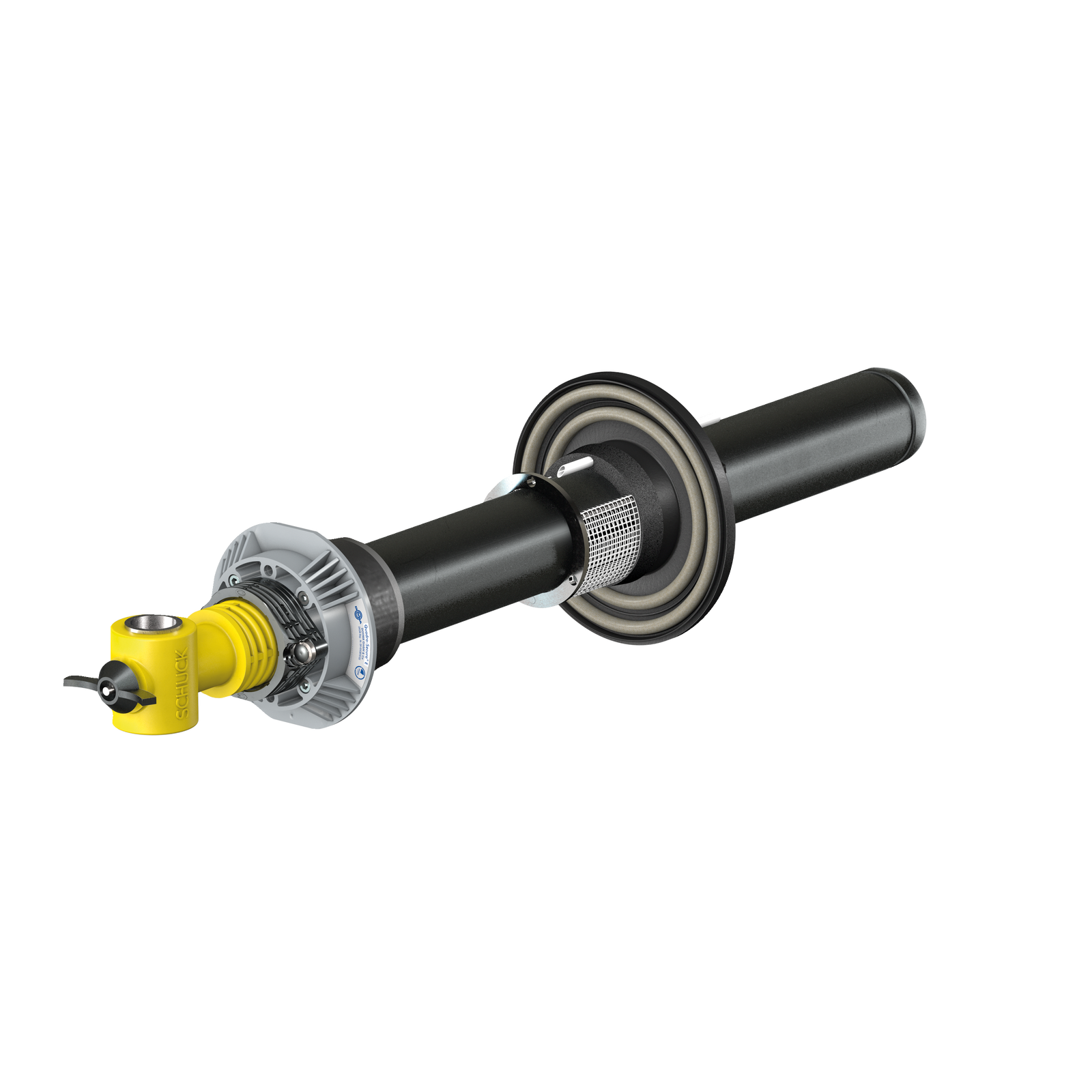

Quadro-Secura® E-Quick
- One-way house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- Trades: gas, water, electricity, telecommunications
Quadro-Secura® E-Quick
added to
.
Quadro-Secura® E-Quick
removed from
.
Technical details
- DVGW approved (RMA, Schuck and VAF-Voigt)
- Gas and pressurized water-tight up to 1 bar
- Relining possible when connecting casing pipes
- Rigid or flexible DN 75 casing pipes can be connected; larger or smaller diameters possible via extension sleeves or reducers
- The system is pre-assembled with a gas and pressurized water-tight blanking plug
Areas of use
- One-way house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- Trades: gas, water, electricity, telecommunications
Product benefits
- with Easy Fix System for simple, quick and secure installation
- with ITL system for optimum contact pressure
- Installation without additional clamping device
- Ideal for sealing on existing thick bitumen coatings
- Can also be used with standard hollow bricks without backfilling
- Short installation times
- Suitable for building renovations
- stepless modular seal for water or energy
