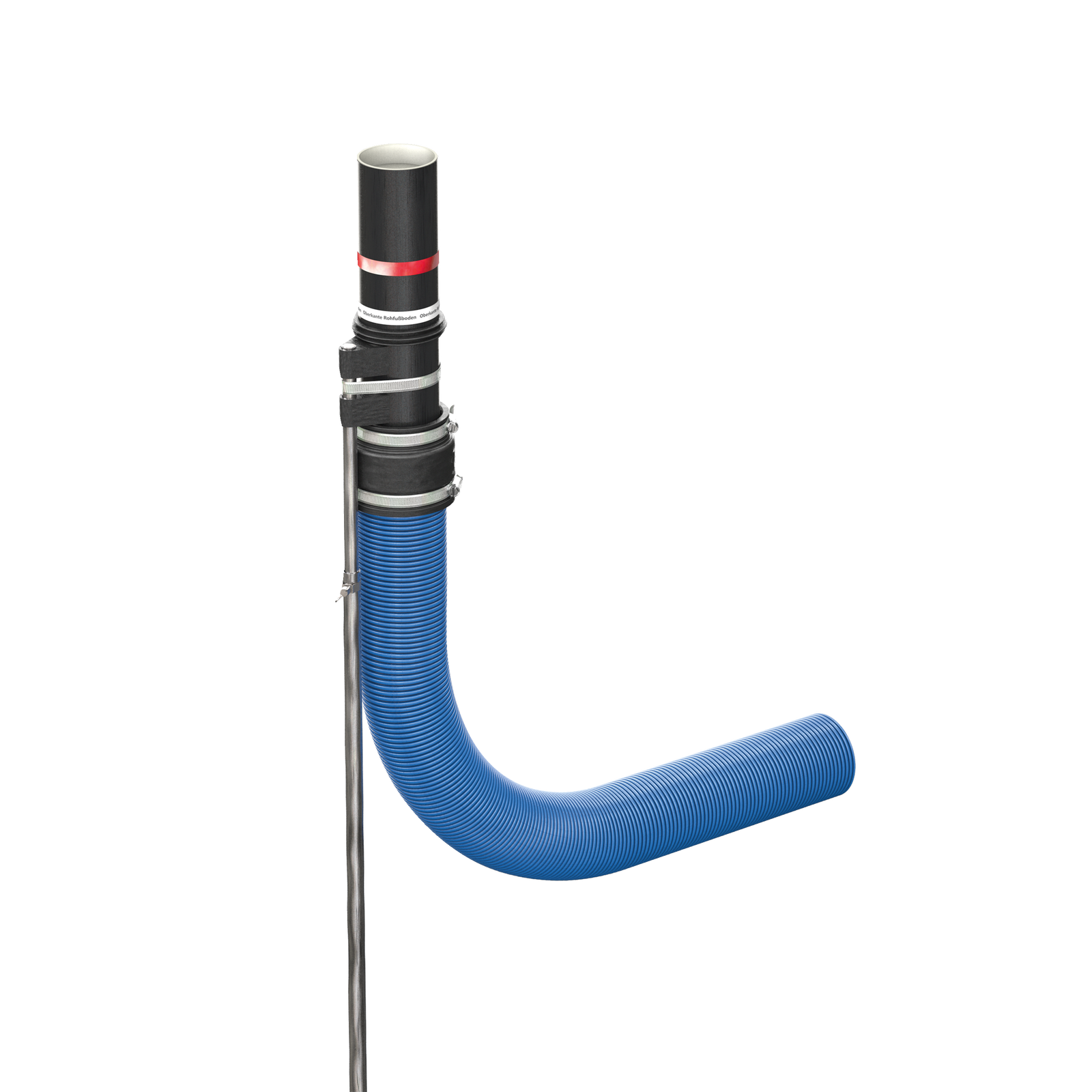

Quadro-Secura® E-BP-R Max

  • Economical house entry as round version
  • For use in structures structures made of waterproof concrete
  • House entries for sealing larger pipe dimensions (e.g. water or electricity)
  • for commercial buildings and larger residential buildings
Dealer search

Technical details

  • Gas and pressurized water-tight
  • Radon-proof - in accordance with FHRK data sheet MB 101
  • Suitable for immediate installation in the floor slab or for later installation in a recess in the floor slab
  • Shell component consisting of plastic lining pipe with rigid pipe bend and height-adjustable ground spike
  • Quadro-Secura® E-BP-R Max in DN 100 incl. Curaflex Nova® Multi sealing insert for pipe diameters from 20 to 63 mm (variably adjustable)
  • Quadro-Secura® E-BP-R Max in DN 150 incl. matching Curaflex Nova® Uno sealing insert (see selection table)

Areas of use

  • Economical house entry as round version
  • For use in structures structures made of waterproof concrete
  • House entries for sealing larger pipe dimensions (e.g. water or electricity)
  • for commercial buildings and larger residential buildings

Product benefits

  • rigid casing pipe (ID 110 or ID 150) for compliance with the bending radii (lengths: 3 m, 6 m, 10 m, 15 m or 25 m)
  • Cables can be inserted independently of the construction progress
  • cables can be easily replaced at a later date (relining)
