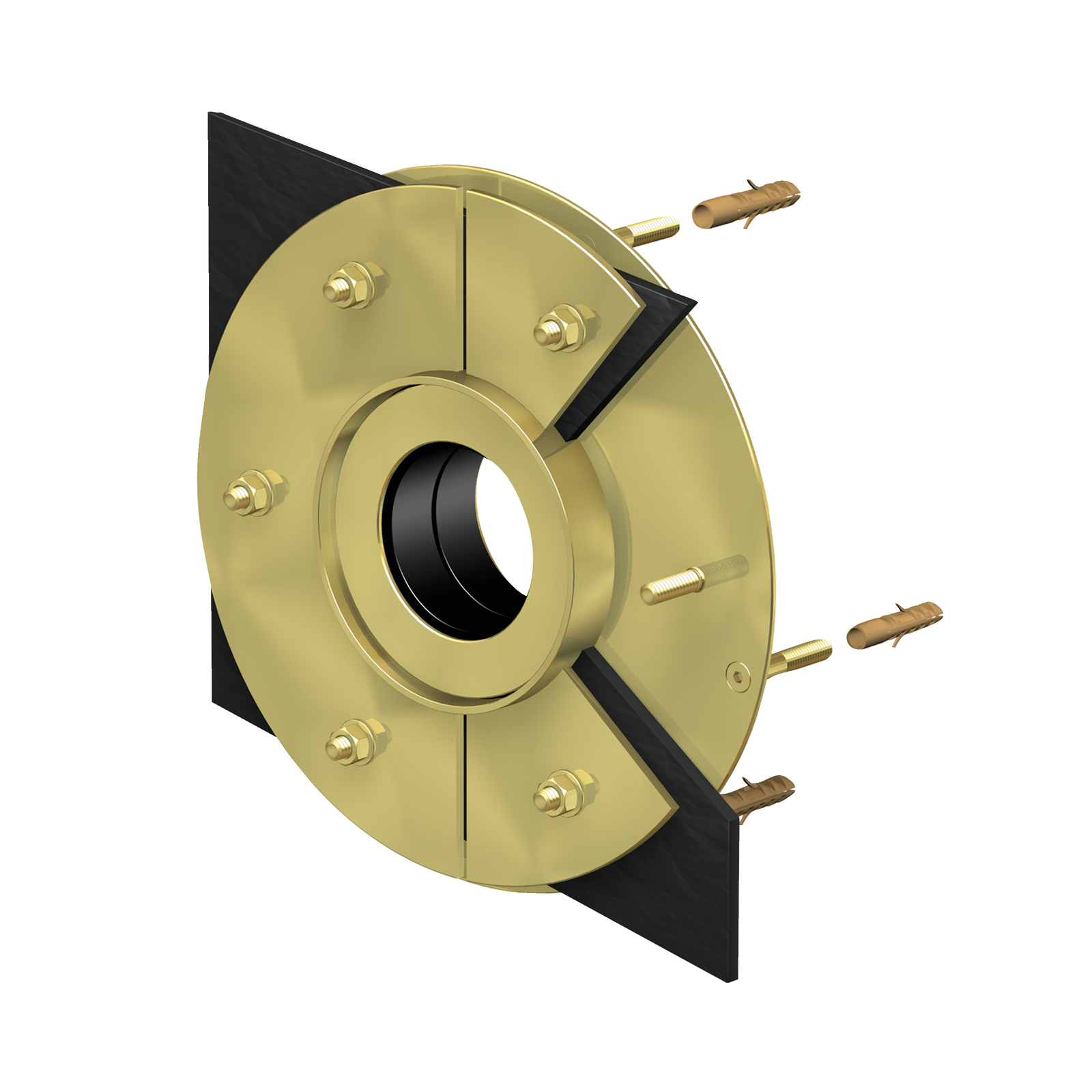

Curaflex® F/2/SD/6
- Sealing of penetrations
- Use in lining pipe provided by the customer or concrete core drill hole
- When used with waterproofing membrane or thick coating (black tank)
- with fixed and loose flange
Curaflex® F/2/SD/6
added to
.
Curaflex® F/2/SD/6
removed from
.
Technical details
- Tested in accordance with FHRK test specification GE 101 (No. G 30 322-2-2) - FHRK 54 LD10
- with flanges to DIN18533
- Gas and watertight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- Angles of the service pipes up to 8º possible
- Absorption of axial movements
- Installation from the side facing away from the pressure
- Depending on the waterproofing membrane, with Curaflex® additions (1775) on both sides for thin and hard membranes or accessories for thick coatings (1776): Sanding the contact surfaces of the fixed/loose flange
Areas of use
- Sealing of penetrations
- Use in lining pipe provided by the customer or concrete core drill hole
- When used with waterproofing membrane or thick coating (black tank)
- with fixed and loose flange
Product benefits
- Large sealing areas
- Permanently tight without retensioning (maintenance-free)
- Higher sealing performance of the gasket insert thanks to DPS and DOYMA-Grip
- System component, without cuts or divisions, with watertight welded bolts
- Integrated fixed and loose flange (loose flange split)
- www.doyma.de
Frame rings: asymmetrically profiled steel rings (DPS up to KB/DN 350), ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
With integrated fixed and loose flange
Rubber seal: Elastomer, 2 x 27 mm thick EPDM gaskets (DOYMA-Grip), optionally EPDM-TW, NBR (fuel/oil resistant) or silicone (high temperature resistant) or FPM (chemical resistant)
