Curaflex Nova® Uno/breit/T
- Sealing of penetrations
- Use in WU concrete core drilling (white tank)
- Ideal for Double/element walls
- #Hinged, for cables already laid
Curaflex Nova® Uno/breit/T
added to
.
Curaflex Nova® Uno/breit/T
removed from
.
Technical details
- Tested in accordance with FHRK test specification GE 101 (No. G 30 322-2-5) - FHRK 80 LD10
- Gas and water-tight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- Angles of the service pipes up to 8º possible
- Absorption of axial movements
- 80 mm sealing width
Areas of use
- Sealing of penetrations
- Use in WU concrete core drilling (white tank)
- Ideal for Double/element walls
- #Hinged, for cables already laid
Product benefits
- with ITL system for optimum contact pressure, can also be fitted with a cordless screwdriver
- Permanently tight without retensioning (maintenance-free)
- higher sealing performance of the sealing insert thanks to DOYMA-Grip
- wide rubber seal covers the prefabricated concrete shell and core concrete
- Clear positioning thanks to fixing straps (included in the scope of delivery)
- Can be retrofitted around existing pipes
- with quick-release fastener for secure and immovable closure

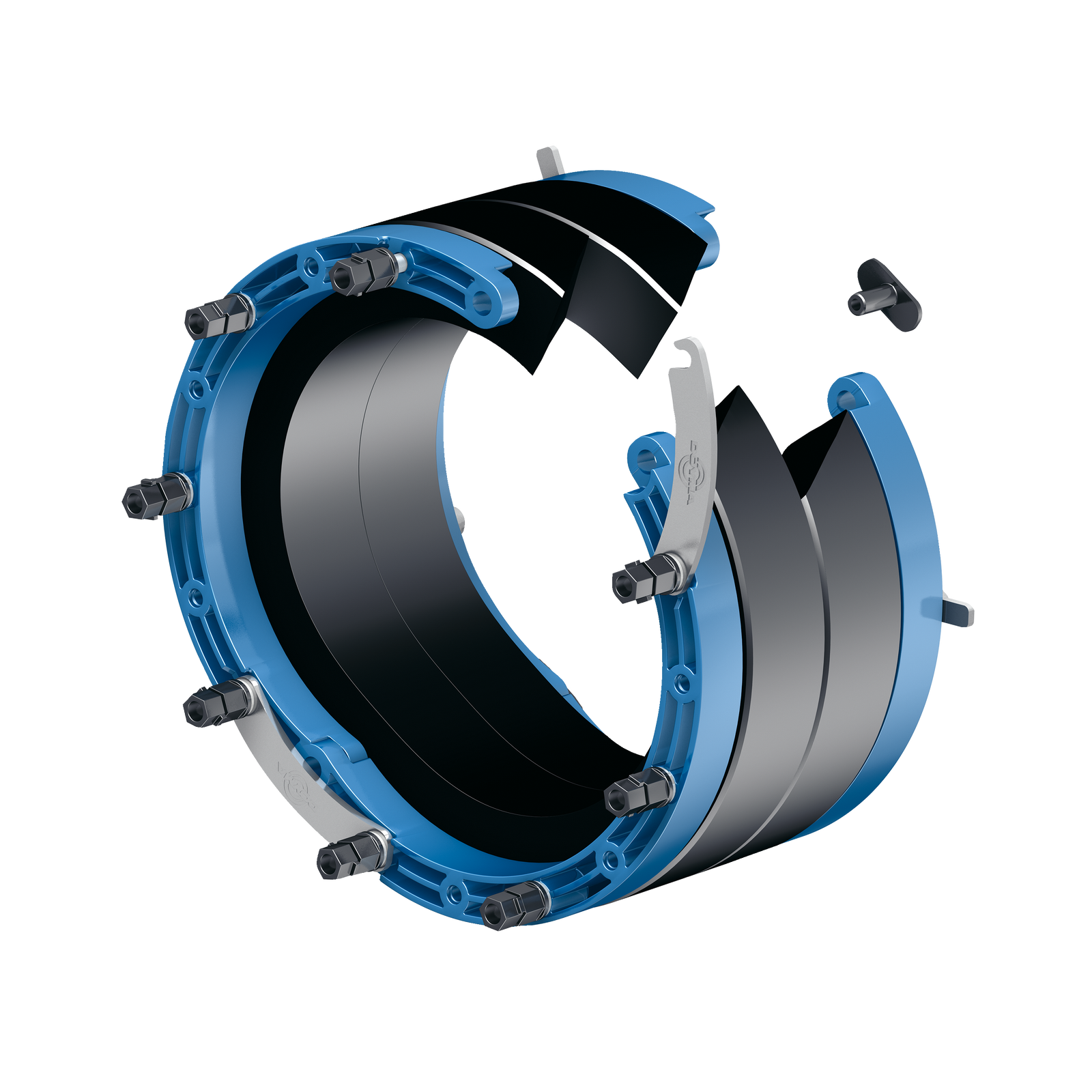

- Split blue frame rings made of high-performance plastic
- split elastomer sealing ring, 2 x 40 mm wide, made of EPDM (DOYMA-Grip)
- Quick-release fastener made of V4A stainless steel
- ITL nuts
- A4 stainless steel screws
- 4 fixing straps incl. V2A stainless steel screws
Media
skip
-
Installation situation
