Quadro-Secura® E-BP/SRB

  • Economical house entry as round version
  • For use in structures structures made of waterproof concrete
  • House entries for sealing of flexible pre-insulated local and district heating pipes
Dealer search Online planning aid

Technical details

  • Gas and pressurized water-tight
  • Radon-safe - in accordance with FHRK leaflet MB 101
  • Suitable for immediate installation in the floor slab or for later installation in a recess in the floor slab
  • Shell component consisting of plastic lining pipe with rigid pipe bend and height-adjustable ground spike
  • Quadro-Secura® E-BP/SRB in DN 200 for pipe diameters from 75 to 142 mm
  • Quadro-Secura® E-BP/SRB in DN 250 for pipe diameters 141 to 178 mm

Areas of use

  • Economical house entry as round version
  • For use in structures structures made of waterproof concrete
  • House entries for sealing of flexible pre-insulated local and district heating pipes

Product benefits

  • Rigid pipe bend for compliance with bending radii and simple cable entry
  • Cables can be inserted independently of the construction progress
  • later replacement of the pipes is easily possible (relining)
  • Earth-side extension possible with commercially available pipes (push-fit socket)

Downloads

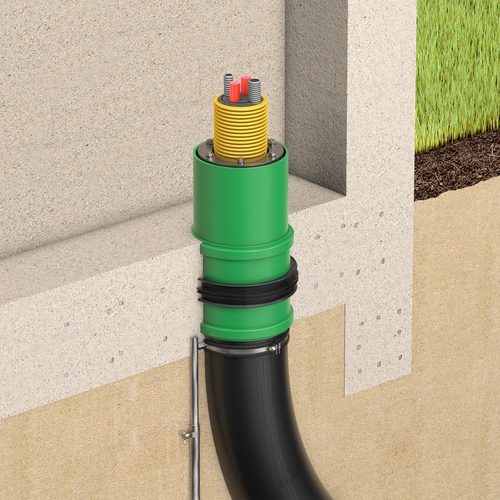

  • Installation situation

Familux Resort hotel building outlined in snow.

The Gran Green Familux Resorts

Existing supply lines in the family hotel The Gran Green Familux Resorts were sealed gas and pressurized water-tight with DOYMA Quadro-Secura® house entries.
