New
DOYMAfix® HP/O-S
- Wall duct for above-ground external building walls
- Use in various wall structures
- for air-to-water heat pumps
- for split heat pumps
- with integrated thermal insulation
Technical details
- Fulfillment of the energy requirements according to the Building Energy Act (GEG)
- Proof of airtightness in accordance with EN 12114 and assessment in accordance with DIN 4108-2
- Gas-tight - installation possible within the protection zone for R290
- Proof of impermeability to driving rain in accordance with EN 1027
- Sound insulation in accordance with DIN EN ISO 10140-2
- Corrosion-free component
Areas of use
- Wall duct for above-ground external building walls
- Use in various wall structures
- for air-to-water heat pumps
- for split heat pumps
- with integrated thermal insulation
Product benefits
- Can be used for both new and existing buildings
- Assured thermal insulation - fulfillment of the GEG requirement
- Aesthetic wall transition with attractive surface finish
- Can be used universally in all common wall structures
- Individual length adjustment to structural conditions
- One-person installation
- Installation can be carried out directly after wall completion
- Separate routing of pipes and cables
- Separate routing of power and control cables
- Thermal separation avoids thermal bridges
- Bird-proof construction
- Low weight facilitates installation
- Quick and easy installation saves time
- Cross-trade installation (shell construction, electrical, HVAC) creates flexibility in the construction process
- Internal and external sealing
- Cable end sleeves DN 25 and DN 32
- Cable conduit system
- Expansion foam for filling cavities
Media
skip
-

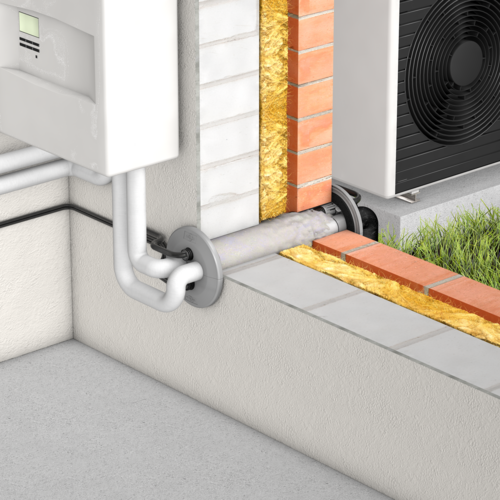

Installation situation
-

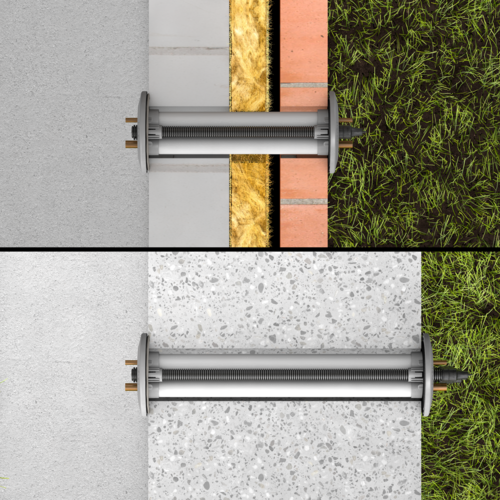

Installation situation
-

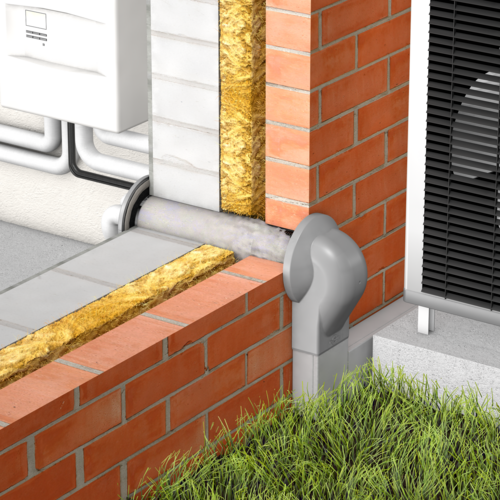

Installation situation
