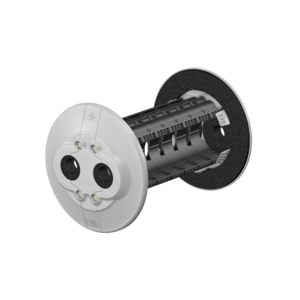

DOYMAfix® Connect HP/O
- Wall duct for above-ground external building walls
- Use in various wall structures
- for air-to-water heat pumps
- with integrated thermal insulation
- with ready-to-connect stainless steel corrugated hoses
DOYMAfix® Connect HP/O
added to
.
DOYMAfix® Connect HP/O
removed from
.
Technical details
- Airtight according to DIN EN 13829
- Tightness against splash water, IP44 according to DIN EN 60529
- Sound insulation according to DIN 41092
- Corrosion-free component
Areas of use
- Wall duct for above-ground external building walls
- Use in various wall structures
- for air-to-water heat pumps
- with integrated thermal insulation
- with ready-to-connect stainless steel corrugated hoses
Product benefits
- Completely ready for connection with DN 25 or DN32 stainless steel corrugated hoses including insulation
- Can be used in both new and existing buildings
- Assured thermal insulation Fulfillment of the GEG requirement
- Aesthetic wall transition with attractive surface finish
- Can be used universally in all common wall structures
- Segmented design enables individual length adjustment to structural conditions
- One-person installation
- Installation can be carried out directly after wall completion
- Separate routing of pipes and cables
- Separate routing of power and control cables
- Thermal separation avoids thermal bridges
- Contact surface for flat connection of the 200% external insulation
- Bird-proof construction
- Low weight facilitates installation
- Quick and easy installation saves time
- Cross-trade installation (shell construction, electrical, HVAC) creates flexibility in the construction process
- Stainless steel corrugated hoses incl. insulation
- Internal and external sealing
- Variably adaptable sealing elements for the pipes
- Flexible cable seals
- Plug-in connection segments
- Expansion foam for filling cavities
Media
skip
-

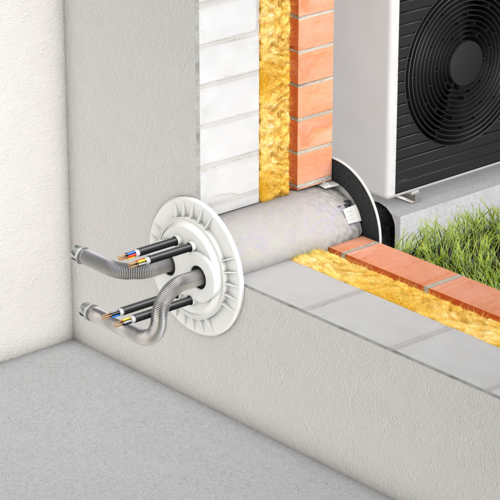

Installation situation
-

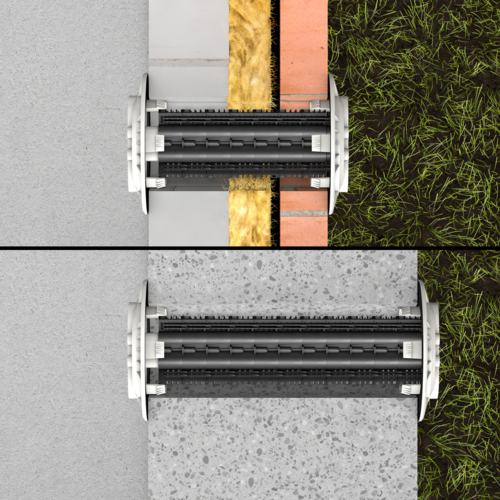

Installation situation
