Curaflex® A/0
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- Permanent blind closure
Curaflex® A/0
added to
.
Curaflex® A/0
removed from
.
Technical details
- Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-1) - FHRK 27 D01
- Gas and water-tight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- single sealing "blind"
Areas of use
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- Permanent blind closure
Product benefits
- Permanently tight without retensioning (maintenance-free)
- Higher sealing performance of the sealing insert thanks to DOYMA-Grip
- Watertight welded bolts
- www.doyma.de
- Frame rings: Steel rings, ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
- Rubber seal: Elastomer, 27 mm thick EPDM seal (DOYMA-Grip), optionally EPDM-TW, NBR (fuel/oil resistant) or silicone (high temperature resistant) or FPM (chemical resistant)
Media
skip
-

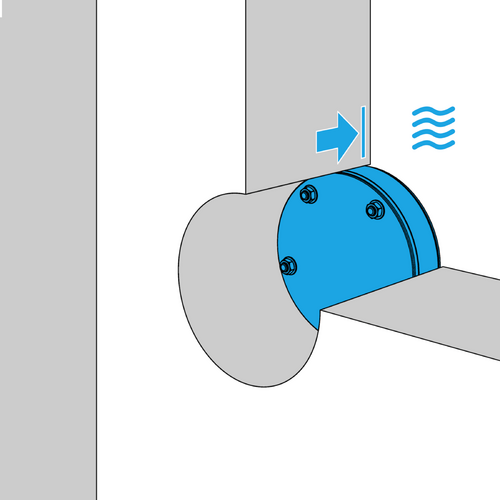

Installation situation
Example Installation of Curaflex® A/0
