New

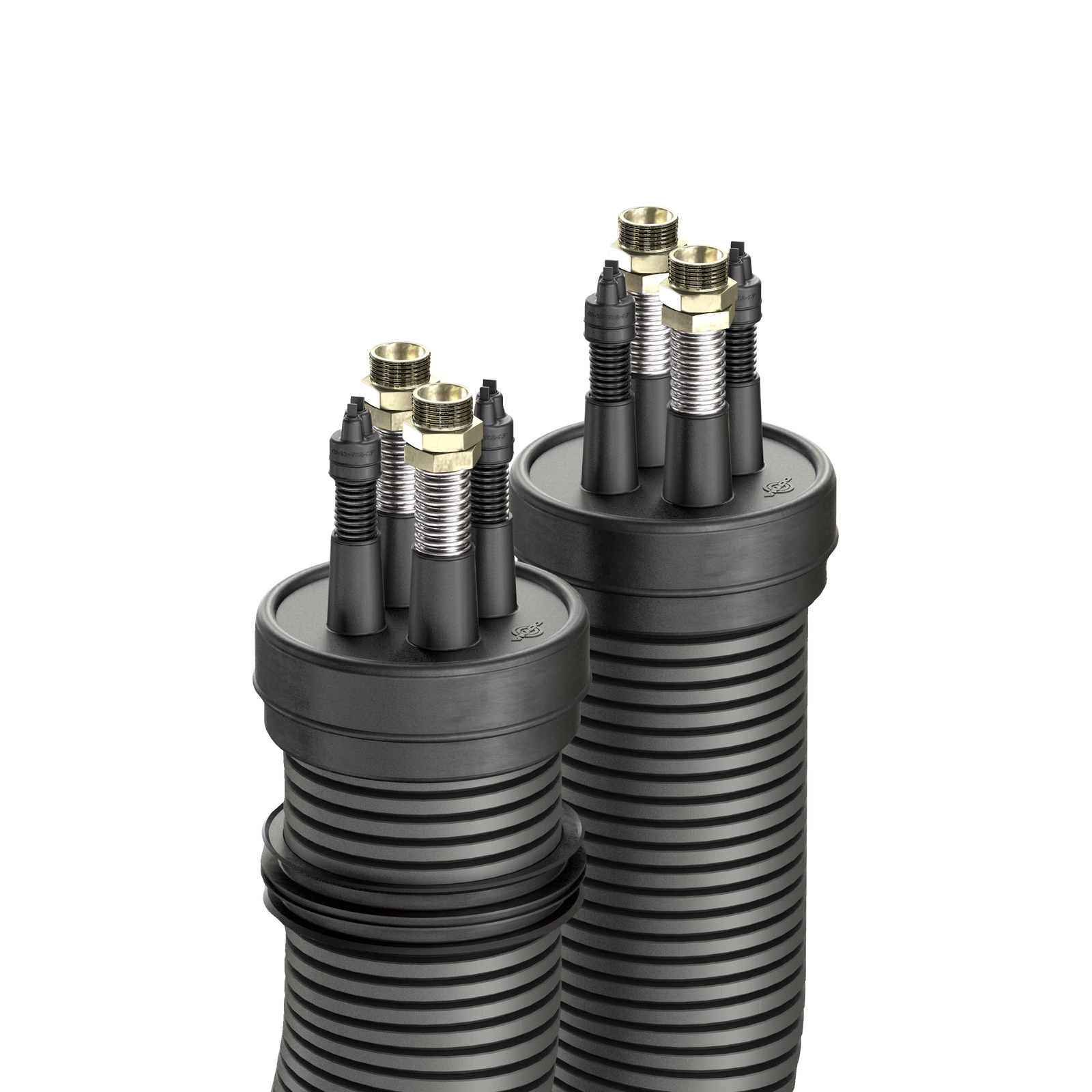

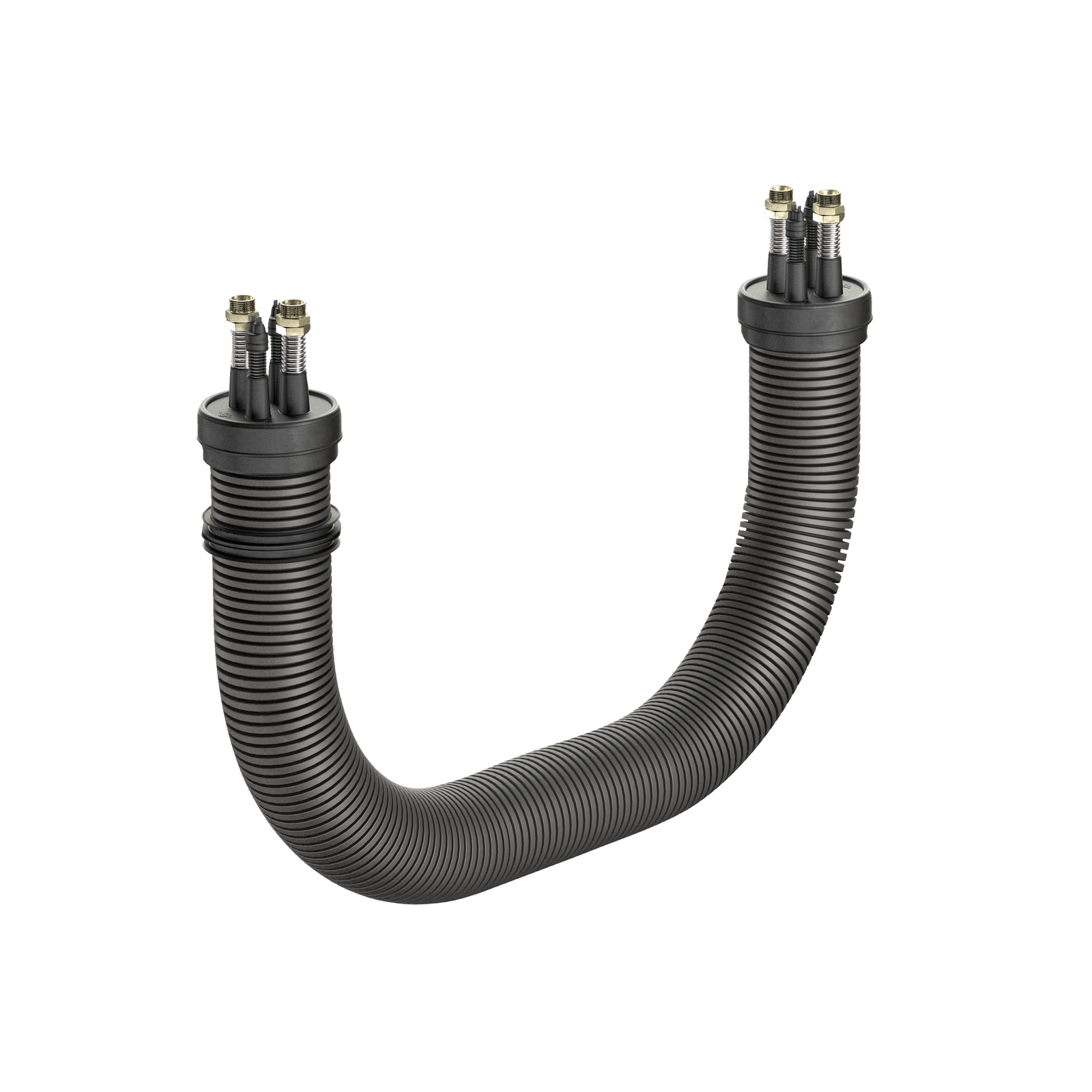

DOYMAfix® Connect HP/P Pro

  • Connection system for base plates
  • For use in structures structures made of waterproof concrete
  • for air-to-water heat pumps (monobloc)
  • a complete package for installation and commissioning
  • Stainless steel corrugated pipe for high flexibility during installation
Dealer search Online planning aid
Pressing water

Technical details

  • Gas and watertight
  • Radon-safe - in accordance with FHRK leaflet MB 101

Areas of use

  • Connection system for base plates
  • For use in structures structures made of waterproof concrete
  • for air-to-water heat pumps (monobloc)
  • a complete package for installation and commissioning
  • Stainless steel corrugated pipe for high flexibility during installation

Product benefits

  • Complete package contains all the necessary parts and components for connection and sealing
  • Ready for immediate connection, adapter nipple included
  • Corrugated stainless steel pipe offers high flexibility during connection (deformation without restoring forces)
  • Flexible production of bends without fittings
  • Quick and easy installation without special tools
  • One-person installation
  • All media lines protected by flexible DN200 casing pipe
  • Separate routing of pipes and cables
  • Separate routing of power and control cables
  • Quick and easy installation of the required cables (power/control cables)
  • Small bending radius of 0.5 m
  • 100% oxygen-tight corrugated stainless steel conduits
  • Self-cleaning effect due to corrugated geometry
  • Cross-trade installation (shell construction, electrical, HVAC) creates flexibility in the construction process

  • Flexible casing pipe DN200
  • Corrugated stainless steel pipes DN32 or DN40 incl. insulation
  • Cable protection pipes DN32

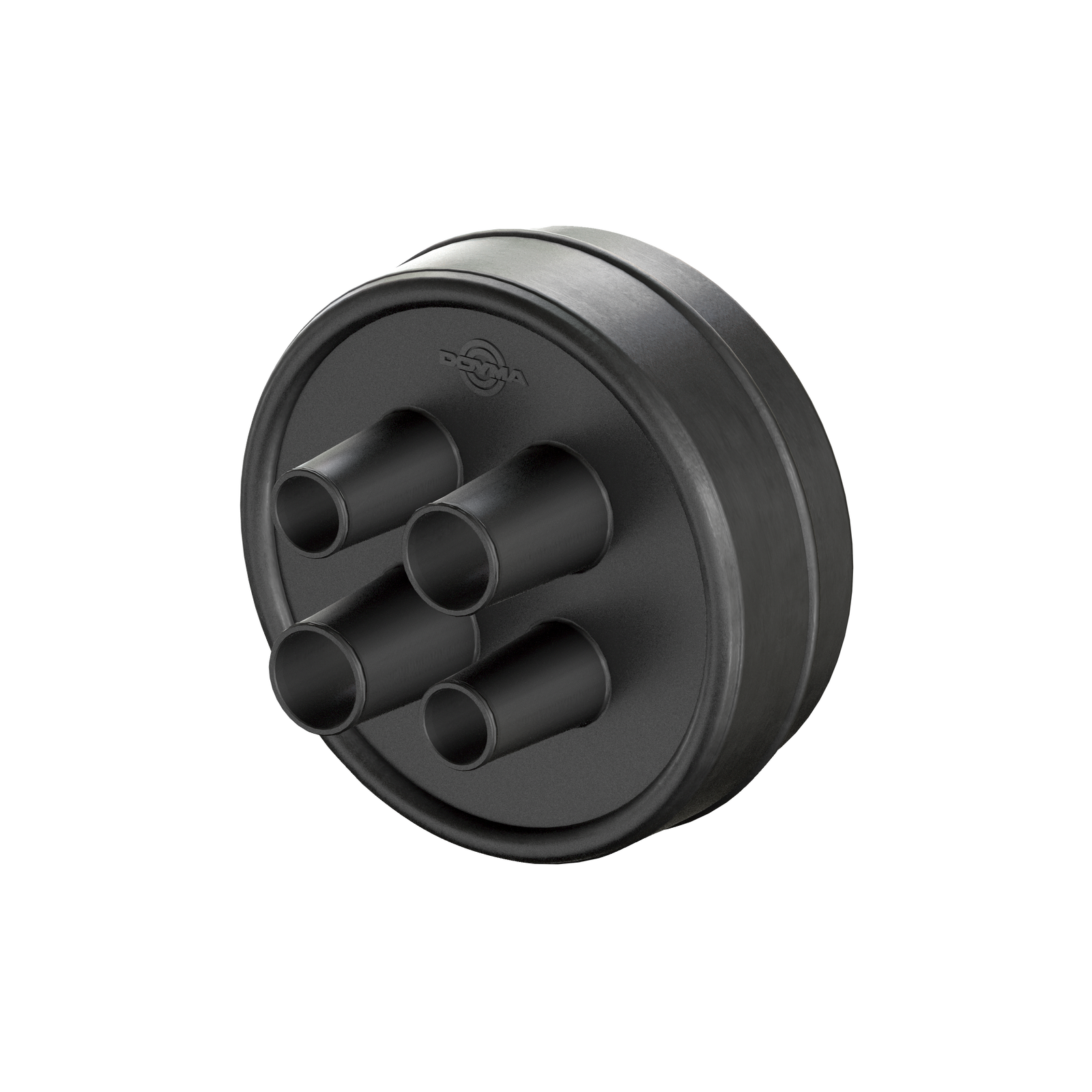

  • Corrugated pipe sealing sleeves DN200
  • Cable end sleeves DN 32
  • Connection sets for DN32 or DN40

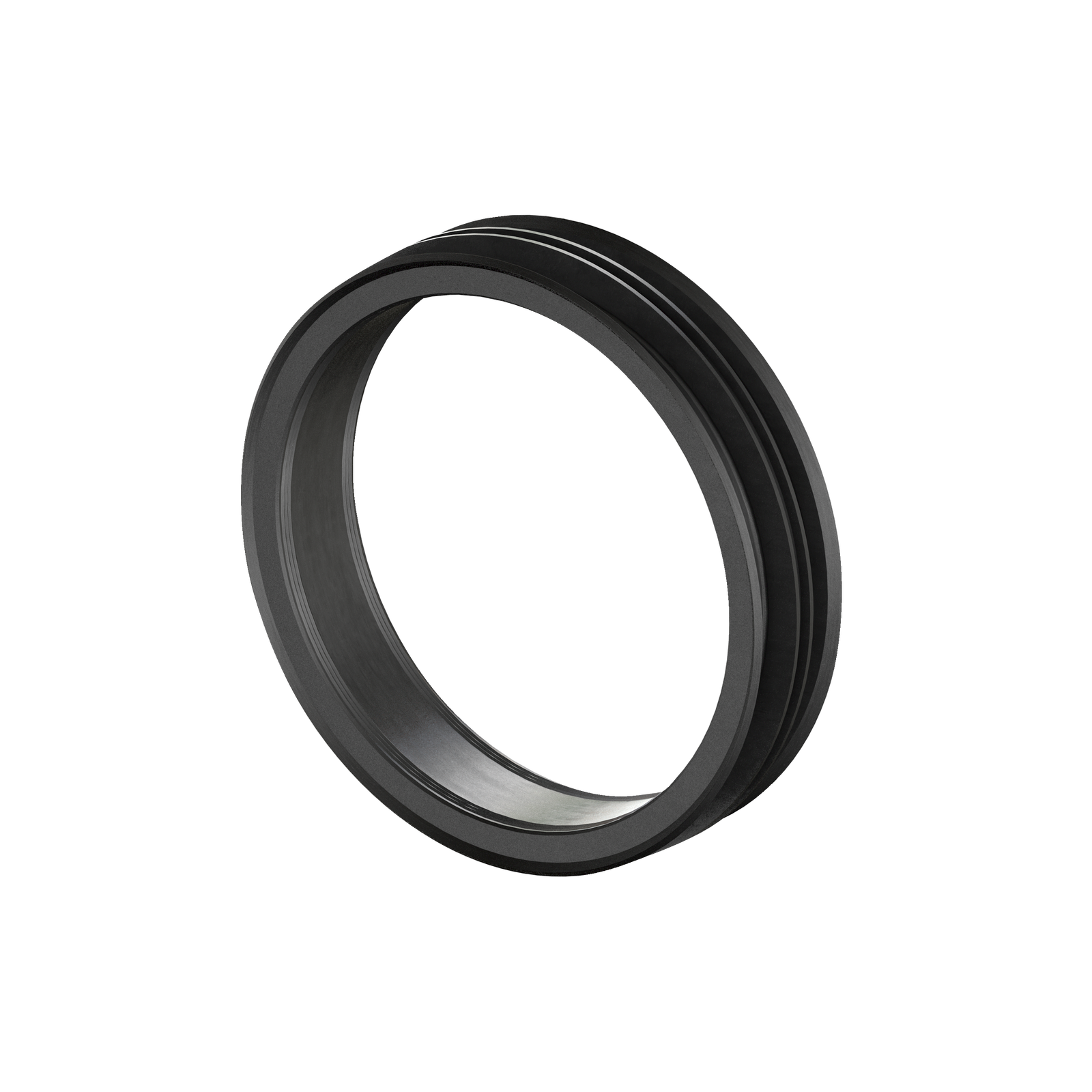

  • Sealing system HKD wall collar DN200

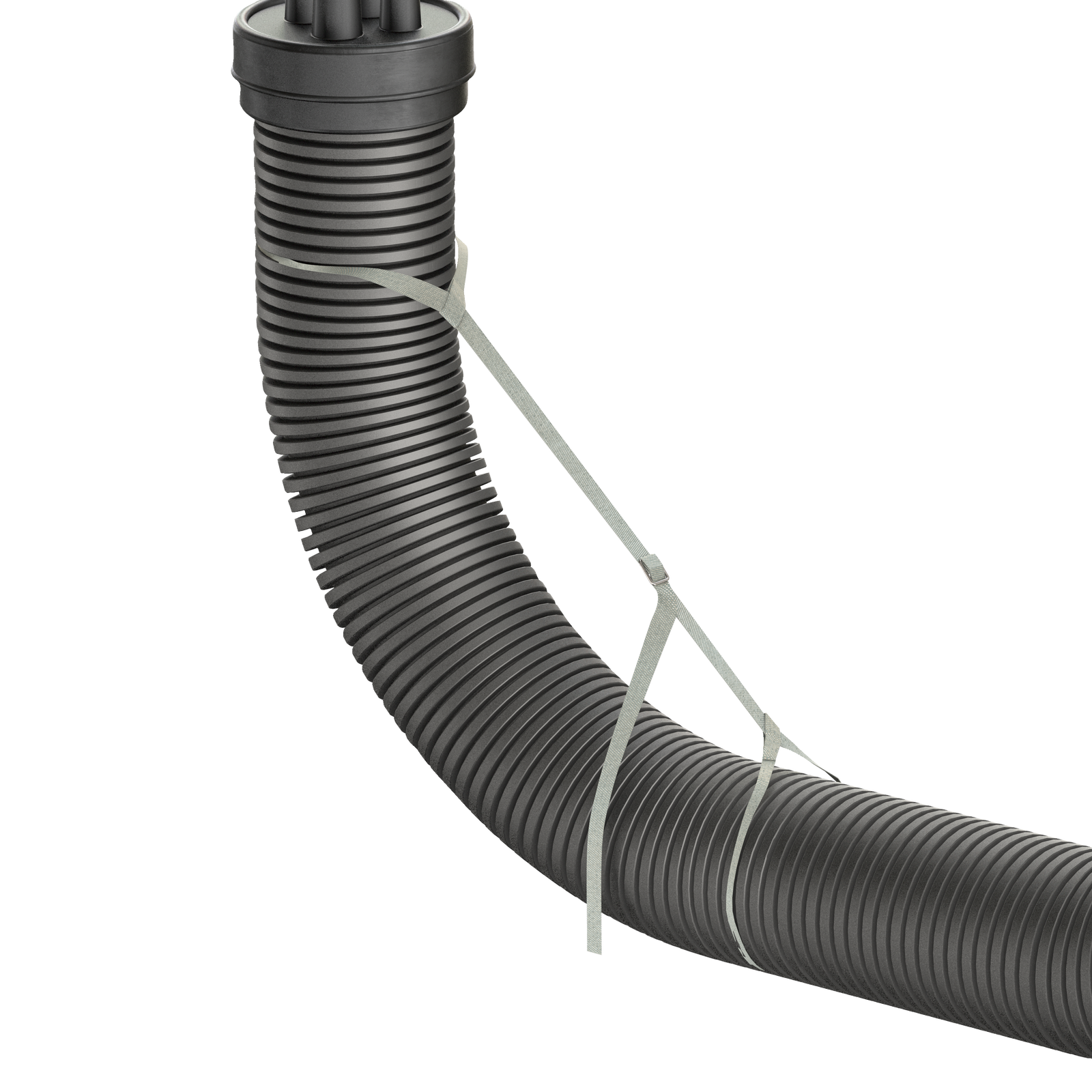

  • Bend pulls
  • Route warning tape

Downloads

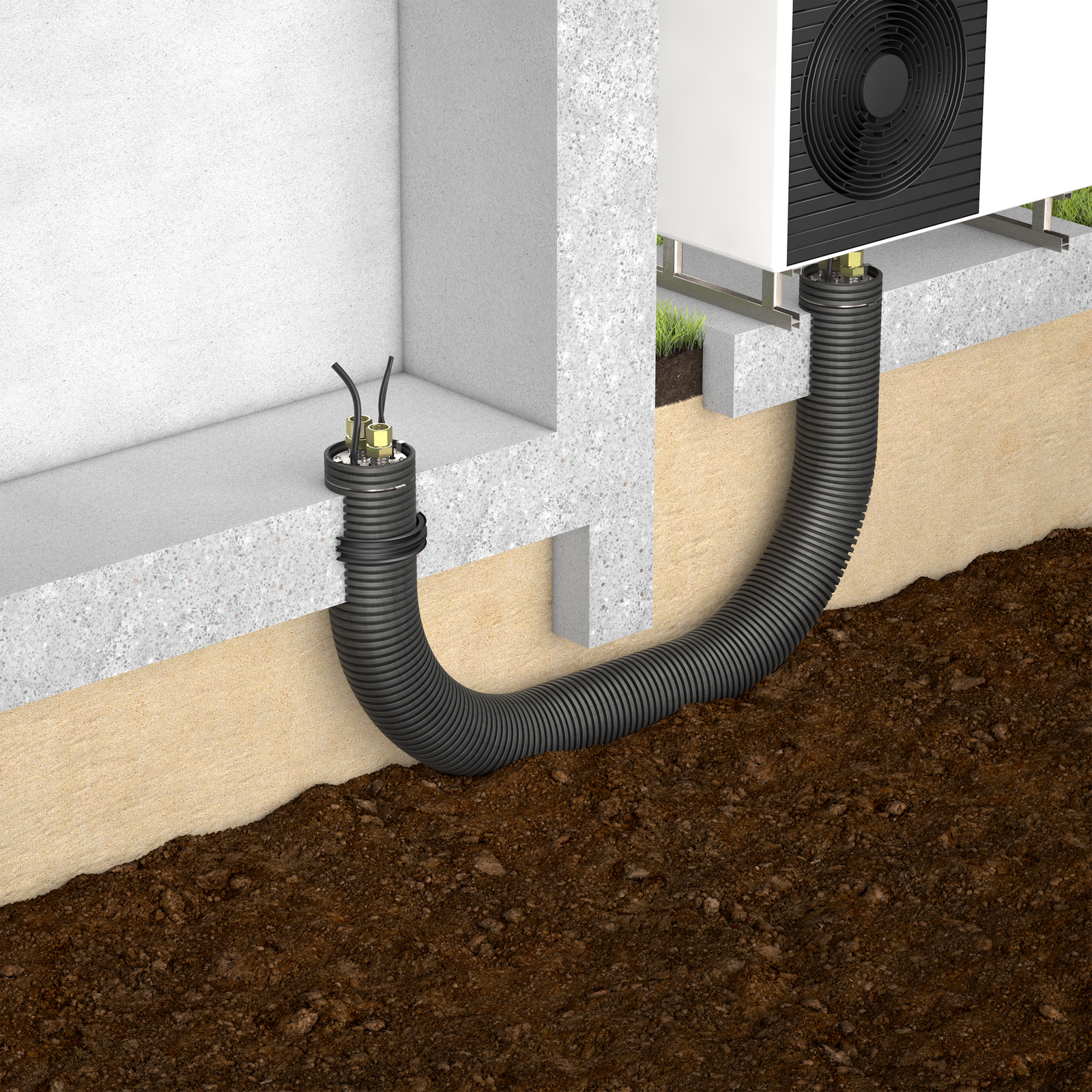

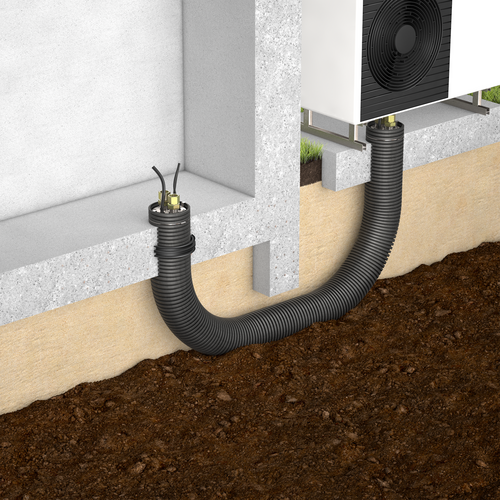

  • Installation situation
